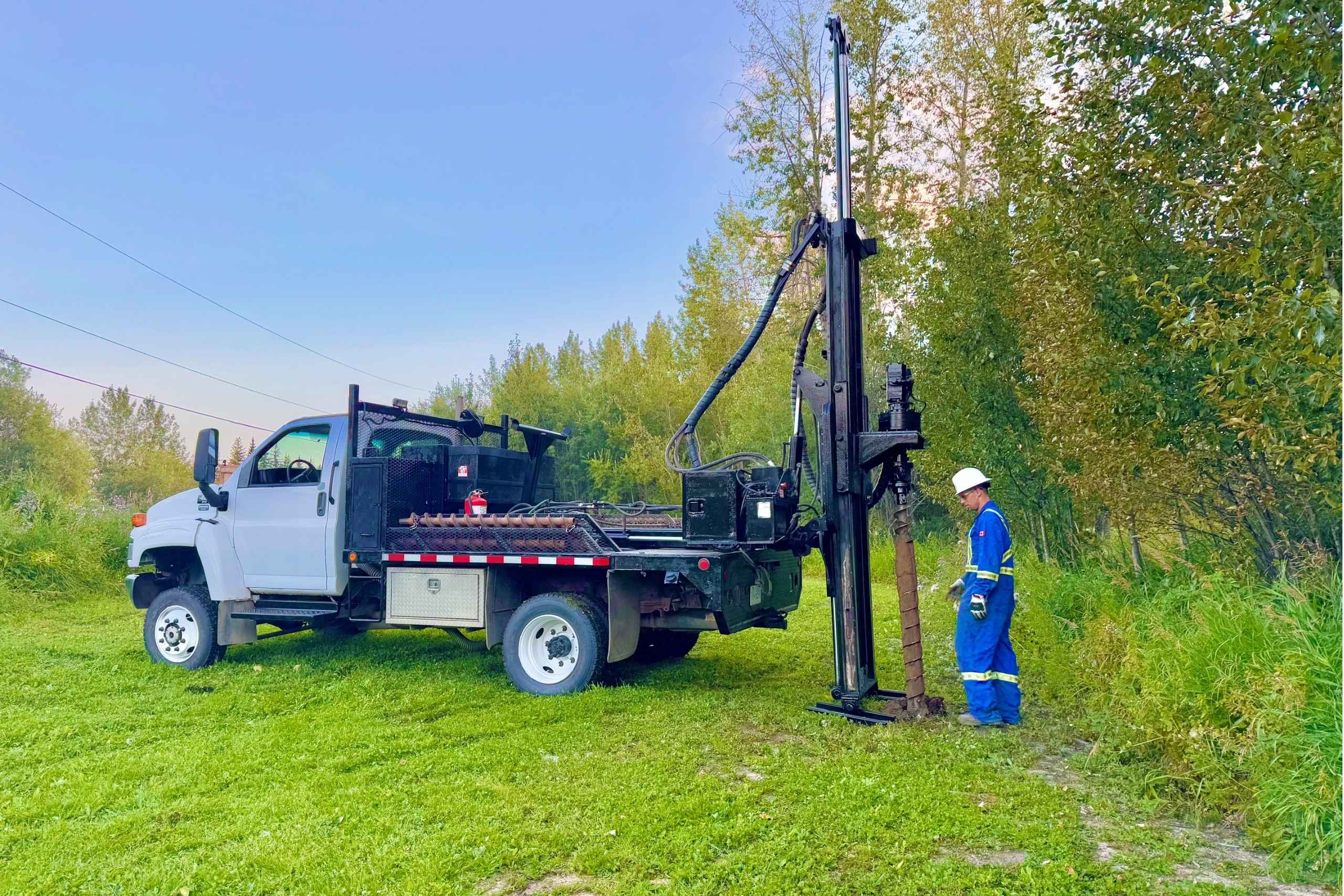

The Top Kick mounted hydraulic drill delivers the power of larger tracked Morooka-style units while retaining the quick setup and road mobility of a truck-mounted rig. Its taller mast maximizes drilling efficiency and delivers consistent performance on demanding jobs. A hydraulically driven drill head provides the adaptability needed across varied ground conditions, and mounting the entire package on a 4×4 GMC Top Kick gives high ground clearance, excellent stability, and the ability to reach remote sites without the time and risk of loading/unloading tracked machines. Crew and equipment space is built in, so the unit can move efficiently from one location to the next—an important advantage on projects with tight schedules. Designed for rapid deployment, this drill gets crews working faster with minimal setup, making it a practical, productive choice for professionals who need reliable performance without the logistical headaches of heavier tracked equipment.
Specifications:
- Unit: Hydraulic Drill mounted on deck of Single cab GMC 5500 Top Kick – 4 Wheel Drive
- Weight: ~30,000lbs (15,000kg) creating a solid foundation
- Tower Up Height: Max 17ft
- Stroke: 11ft
- Max Depth: 60ft
- Rotation Torque: 7,500ft-lbs
- Pullback: 27,500lbs
